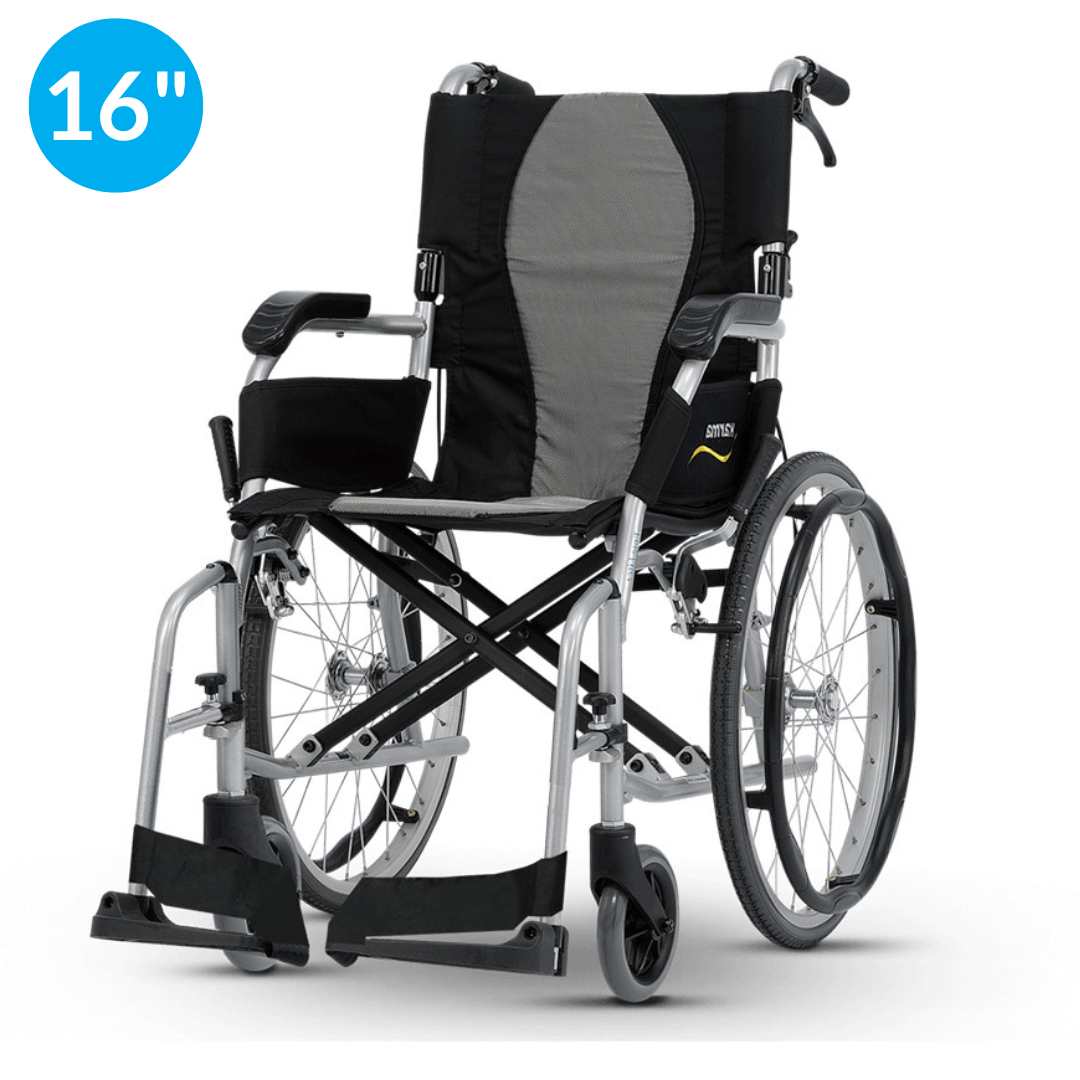

The Ergo Lite 2 is an ultralight aluminium wheelchair with the ergonomic features of the Ergo Lite. Transfer easily in and out of the wheelchair with the detachable swing-away footrest.
Features & Benefits
- AEGIS Microbe Shield permanently bonded antimicrobial barrier.
- Swing in/out detachable footrest.
- Fold-able backrest and frame for effortless storage and transportation.
- Desk-length padded armrests.
- Attendant brakes.
- Comfortable & durable upholstery.
- 20” Quick release spoke rear wheels.
Product Specification
| Type | Self Propelled |
| Nominal Seat Width | 16″ |
| Total Product Weight | 10.7kg |
| Weight of Heaviest Part |
6.7kg (20″ Quick Release Wheels)
9.7kg (20″ Fixed Rear Wheels) |
| Maximum user weight | 100kg |
| Overall length with legrest | 930mm |
| Overall Width | 595mm |
| Overall Height | 900mm |
| Folded Length | 695mm |
| Folded Width | 280mm |
| Folded Height | 700mm |
| Caster x Rear wheel size | 6″ x 20″ |
| Handrim diameter | 430mm |
| Horizontal location of axle | 5mm |
| Minimum turning radius | 820mm |
| Minimum turning radius without user | 735mm |
| Pivot width | 1150mm |
| Static stability downhill | 17.9° |
| Static stability uphill | 10.1° |
| Static stability uphill with anti-tippers | 11.4° |
| Static stability sideways | 14.3° |
| Seat plane angle | 5° |
| Effective Seat Depth | 430mm |
| Nominal Seat Depth | 420mm |
| Effective Seat Width | 400mm |
| Seat Surface Height at Front Edge | 480mm |
| Backrest angle | 11° |
| Seat to Backrest Angle | 96° |
| Backrest Height | 420mm |
| Leg to Seat Surface Angle | 102° |
| Footrest to seat distance | 360-410mm |
| Armrest to seat distance | 215mm |
| Front Location of Armrest Structure | 310mm |
| VAT | Excluded, Included |
|---|
